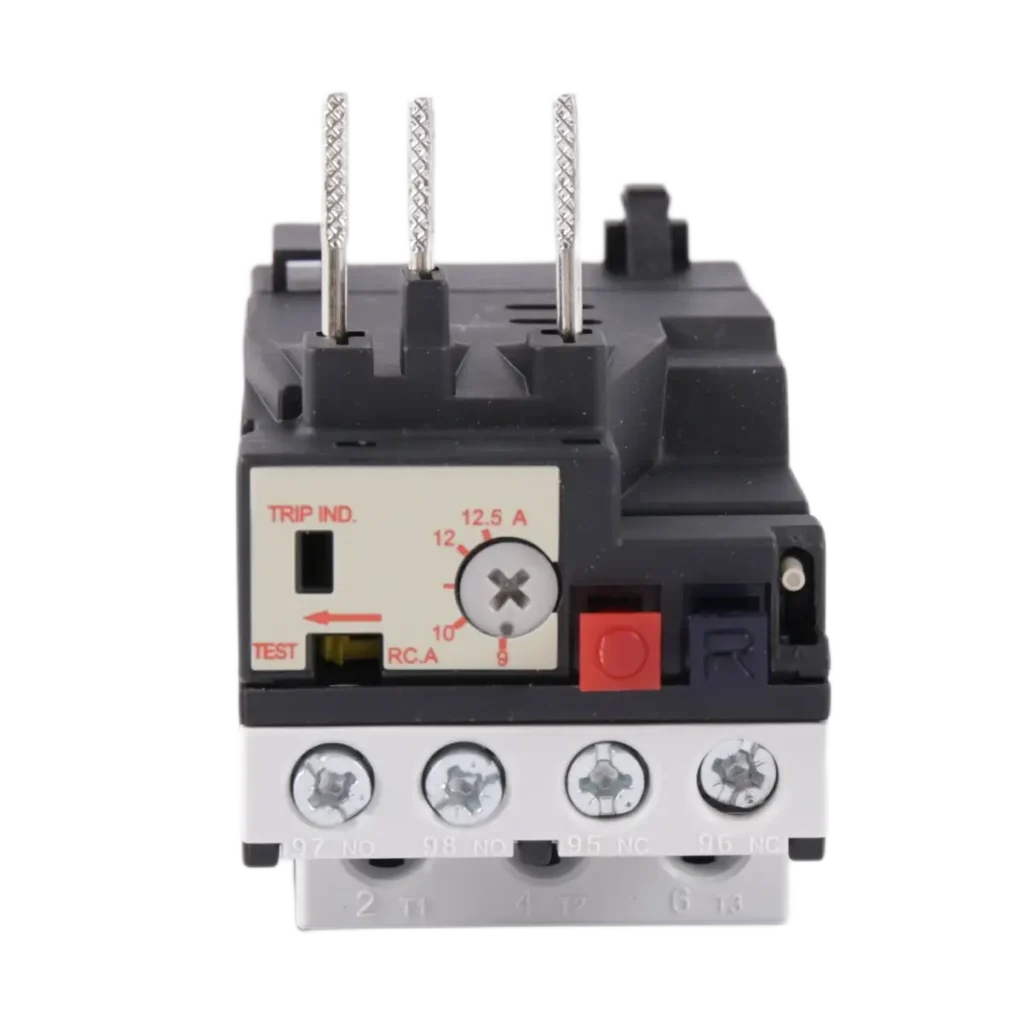

0.1-38A UL Approved Thermal Overload Relay

For use with HC5-11/16/18/23/32/38

Rated Current

Choose an option 0.1-0.16A 0.16-0.25A 0.25-0.4A 0.35-0.5A 0.45-0.63A 0.55-0.8A 0.75-1A 0.9-1.3A 1.1-1.6A 1.4-2A 1.8-2.5A 2.3-3.2A 2.9-4A 3.5-4.8A 4.5-6.3A 5.5-7.5A 7.2-10A 9-12.5A 11.3-16A 15-20A 17.5-21.5A 21-25A 24.5-30A 29-36A 33-38A

SKU HCR5-38 Category Industrial Motor Controls

DESCRIPTION

Description

Three-phase bimetallic chip.

With phase failure protection.

Continuous adjustable device with setting current.

With temperature compensation.

With action indication.

With testing organization.

With stop button.

With manual and automatic reset buttons.

Separable normally open and normally closed contacts.

Installation method: plug-in installation with contactor, independent installation.

Standard:

UL 60947-4-1;

GB/T 14048.5/IEC 60947-5-1

GB/T 14048.4/IEC 60947-4-1
