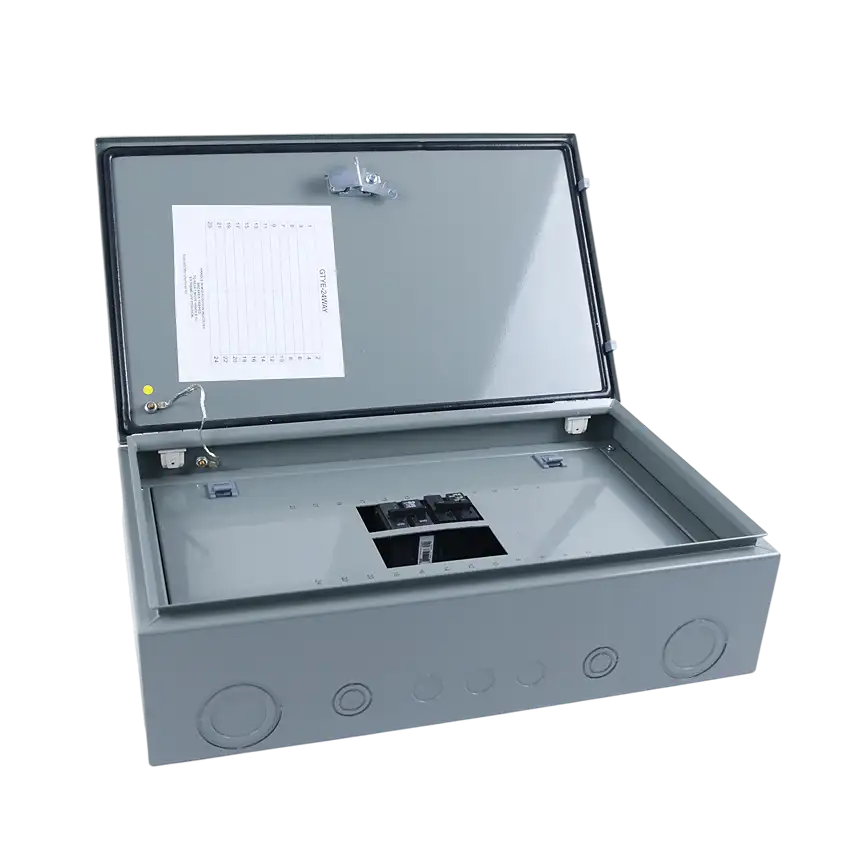

HSN Series Plug-in Neutral Load Center

The HSN Series Plug-in Neutral Load Centers are the perfect choice for residential, commercial, and industrial electrical systems. Renowned for their durability, cost-effectiveness, and safety, these load centers deliver a simple, clean, and fast power management solution for your projects.
SKU HSN Category

DESCRIPTION

Description

Features:

  • Secure Installation: Equipped with durable hook-rails for easy and stable mounting.
  • Flexible Configuration: Supports various circuit layouts to meet complex power needs.
  • Optimized Neutral and Ground: Offers 75% neutral and 50% ground positions based on circuit count for efficient distribution.
  • Integrated Neutral Bus: Streamlines wiring and boosts installation speed.
  • 10-Year Extended Warranty: Ensures long-term reliability for your investment.

Applications:

  • Residential electrical systems
  • Commercial building power distribution
  • Industrial facility power management
  • Suitable for scenarios requiring high durability and flexibility

Technical Specifications:

  • Model: HSN Series
  • Number of Circuits: 8 to 28 spaces, 12 to 48 circuits
  • Main Breaker Type: Main Breaker (B) or Main Lug (L)
  • Rated Current: 100A, 125A, 150A, 200A
  • System Type: Single-phase three-wire, three-phase three-wire, or three-phase four-wire
  • Bus Bar Material: Aluminum or Copper
  • Dimensions: Length 400mm to 650mm, Width 360mm, Height 160mm
  • Mounting Type: Flush or Surface mount
