Description

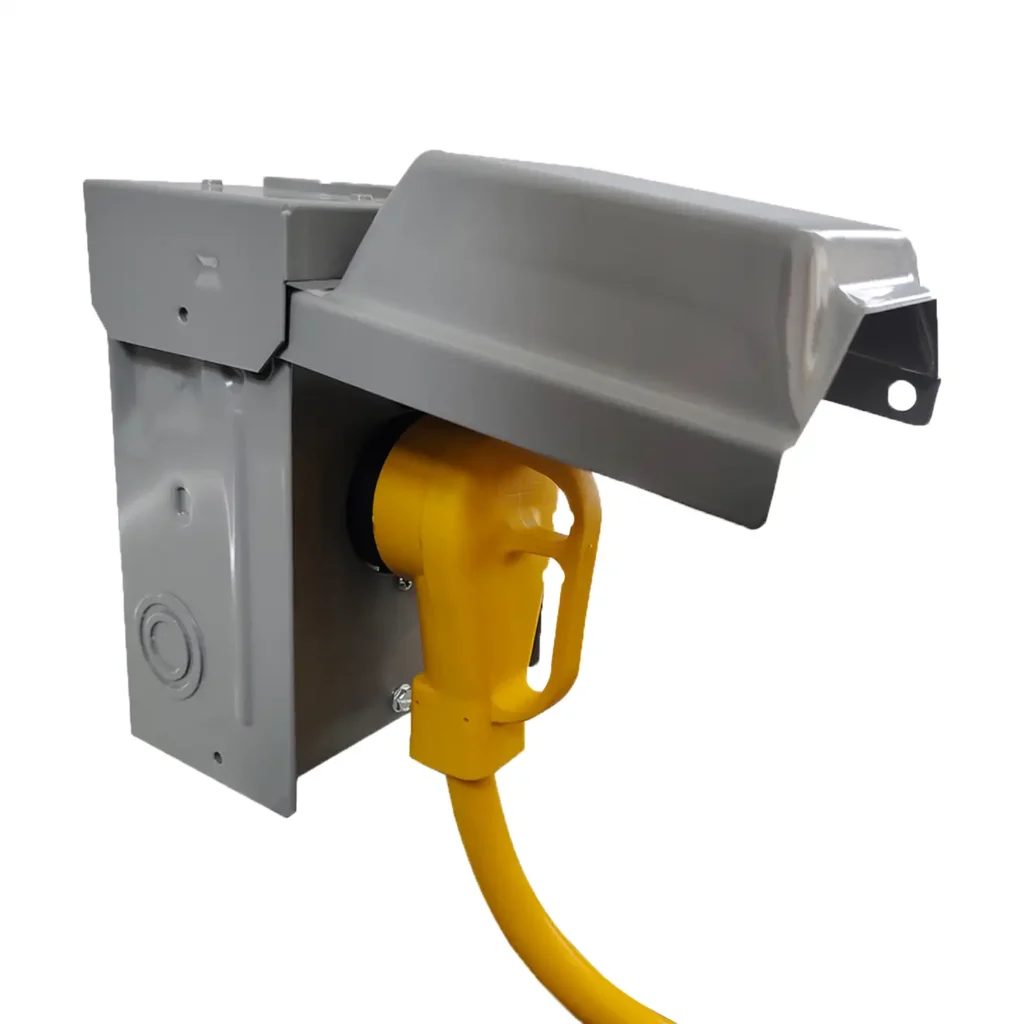

The HDS2 Outdoor Power Outlet Box Series from HIITIO is designed to deliver safe, reliable electricity to any outdoor environment. Whether for construction sites, backyards, barns, or RV parks, these units offer tamper-resistant, weatherproof performance in a compact, durable enclosure. All models feature a polyester powder-coated finish to resist fading and chipping, and include provisions for padlocks to prevent unauthorized access.

Specification

Model Number	Receptacles	Amps	Cabinet Size (in.)	Weight(Ibs.)
HDS2-001	TT-30R	125VAC 30A	5×7	4
HDS2-002	5-50R	125VAC 50A		4
HDS2-003	14-50R	125V/250VAV 50A		4
HDS2-004	GFCI	125VAC 20A GFCI TR/WR		4
HDS2-005	GFCI*2	125VAC 20A GFCI TR/WR		5
HDS2-006	TT-30R & GFCI	125VAC 30A & 125VAC 20A GFCI TR/WR		5
HDS2-007	GFCI	125VAC 15A GFCI TR/WR		4
HDS2-008	GFCI*2	125VAC 15A GFCI TR/WR		5
HDS2-009	GFCI&Switch	125VAC 15A GFCI TR/WR & 125VAC 15A Switch		4.5
HDS2-010	GFCI & Switch	125VAC 20A GFCI TR/WR & 125VAC 15A Switch		4.5
HDS2-011	L14-30R	125V/250VAC 30A		4
HDS2-012	L5-30R	125VAC 30A		4
HDS2-013	L14-30R & Switch	125V/250VAC 30A & 125V 15A Switch		4.5
HDS2-014	L5-30R & Switch	125VAC 30A & 125V 15A Switch		4.5
HDS2-015	PDS & GFCI	125VAC 15A GFCI TR/WR & PDS		5
HDS2-016	PDS & GFCI	125VAC 20A GFCI TR/WR & PDS		5

Dimensions (mm)
