Description

Specification

Cat. No.			Main Ampere Rating		HP Rating				Wire Size Range Cu/Al 60℃ or 75 ℃
					120V		240V
PDS-30A, PCDS-30A			30AMP, 240VAC 1 PHASE, 3 WIRE		STD. 0.5 MAX. 2		STD. 1.5 MAX. 3		#14-3
PDS-60A, PCDS-60A			60AMP, 240VAC 1 PHASE, 3 WIRE		STD. 1.5 MAX. 3		STD. 3 MAX. 10		#14-3
PDS-60AN, PCDS-60AN			60AMP, 240VAC 1 PHASE, 3 WIRE		-		STD. 3 MAX. 10		#14-3

Product Mode

		PCDS		-	60A	N

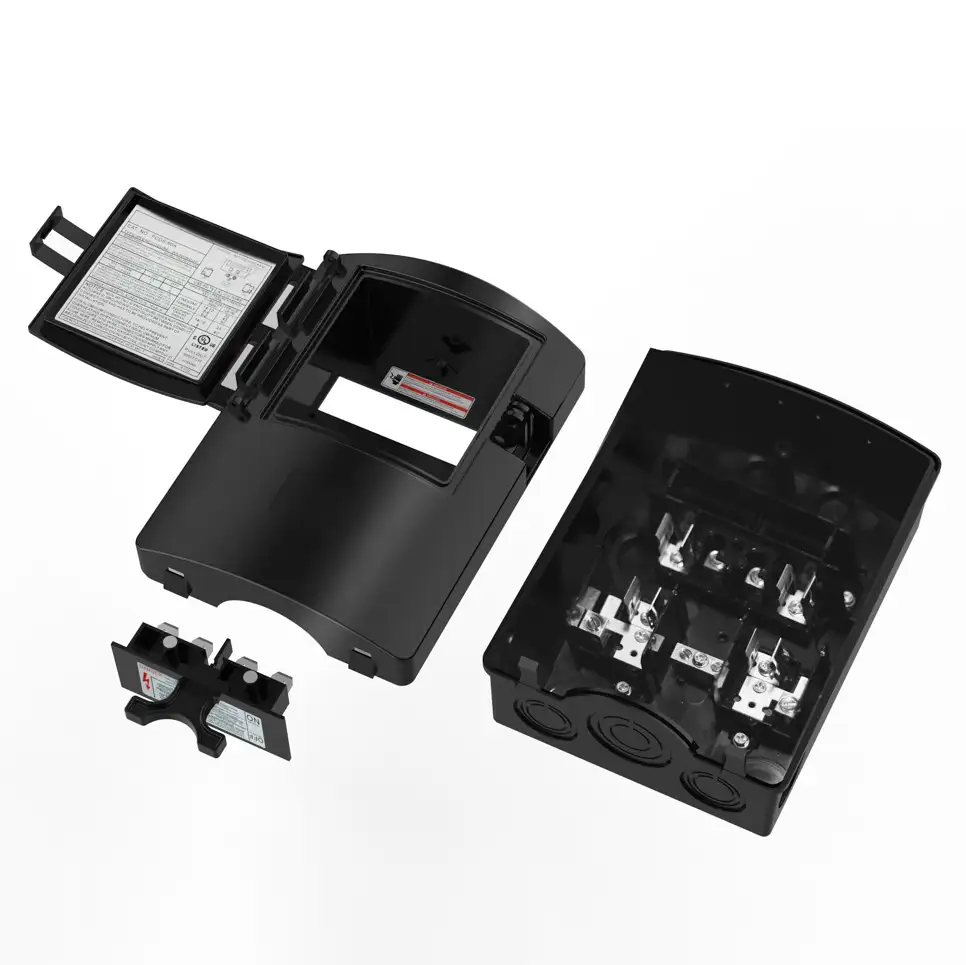

Product Code: PCDS: Plastic Enclosure; PDS: Metal Enclosure
Full Load Amps: 60A: 60A; 30A: 30A
Fuse: Nil: Fused; N: Non-Fused

• An air conditioning disconnect is a disconnect located between a load center(distribution panel) and air conditioner.
• Air Conditioning Disconnects product line provides an installer or repair personnel with a visible disconnecting means when performing maintenance.
• Air Conditioning Disconnects are also known as disconnects, pullouts or air Non-fused pullout devices conditioning switches.
• Provide personnel with a visible ON-OFF disconnecting means. While fused pullout units also perform this function, they also provide an additional level of devices are of a pullout design, where the user physically removes or “pulls out” a tab to break the electrical connection.
