Description

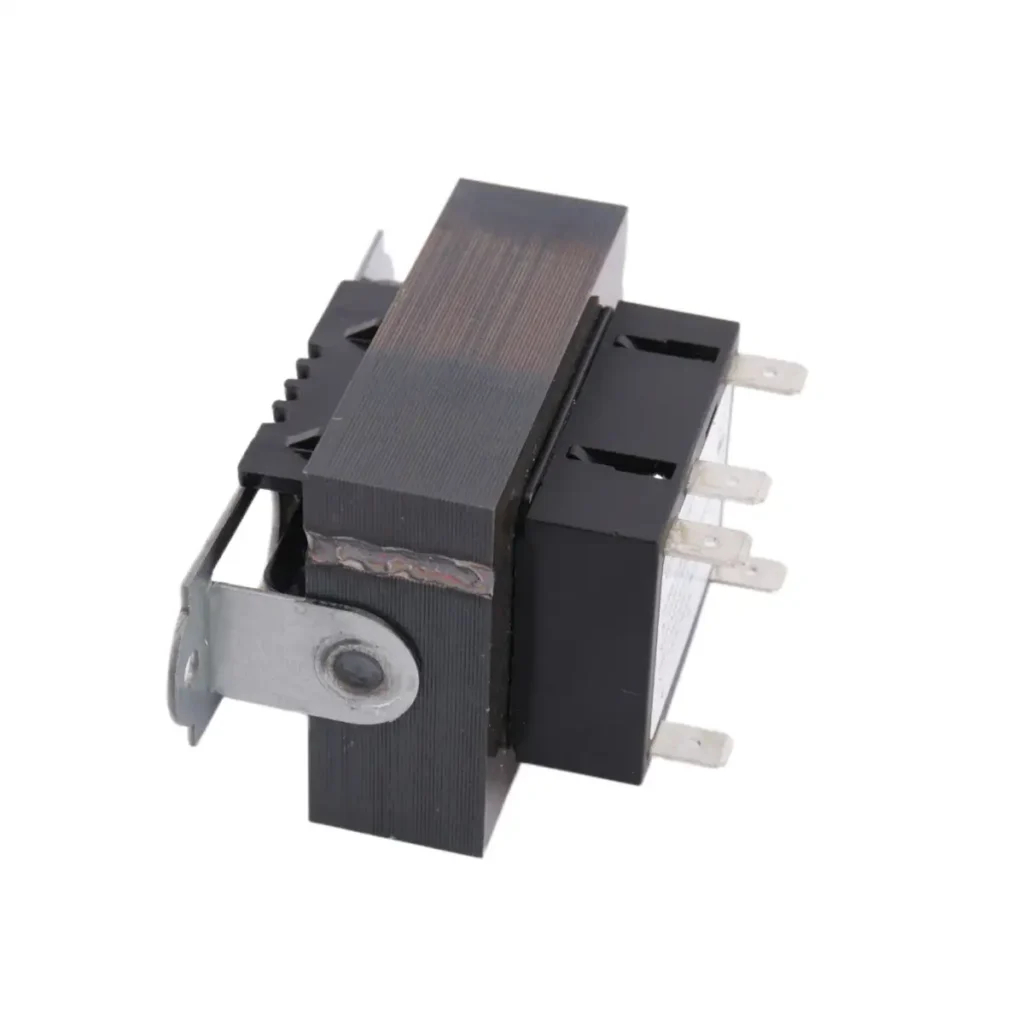

Introducing the HIITIO Control Transformer, designed for superior performance and energy efficiency. With a low standby power consumption of under 0.9W, our transformers are ideal for a variety of applications, including home appliances, medical equipment, communication devices, and solar energy systems.

Features:

• Versatile Voltage Options: Available primary voltages of 120V, 208V, 240V, 277V, 380V, 480V, and 575V.
• Reliable Output: Provides a stable secondary voltage of 24V, perfect for your power supply needs.
• Compact Design: Dimensions range from 82mm x 60mm x 49mm to 102mm x 103mm x 65mm, making it easy to integrate into your setup.
• High Isolation Voltage: Ensures safety with an impressive isolation voltage of 3500V.
• Wide Temperature Range: Operates effectively in temperatures from -25°C to +70°C.
• Customizable Options: We offer custom design solutions to meet your specific requirements.

Certifications:

Our transformers comply with UL, CE and RoHS standards, ensuring quality and safety.

Product Data Sheet

Item	Description
rated power (VA)	30~75
Primay Voltage(V)	120/208/240/277/380/480/575
Secondary Voltage(V)	24
Dimensions	82*60*49(30/40/50VA)
	102*103*65(375VA)
Terminal	UL material
Wire lead	Shielded cable 1.0M
Isolation voltage	3500V
Operating temperature	-25℃ ~+70℃
Frequency	50Hz-60Hz
Accuracy	±5%
Insulation grade	Class B (130℃)
Temperature rise	Temp rise max 80℃

Product Model

Part Number	Model	Terminal (optional)	Capacity (VA)	Primay		Secondary	Dimensions (LAW/H ) mm
				voltage	Frequecny	Voltage
284700010001	HC203021FM	Terminals/Leads	30	208/240	50/60	24	82*60*49
284700010002	HC203031FM	Terminals/Leads		120/208/240	50/60	24	82*60*49
284700010003	HC2030120FM	Terminals/Leads		120	50/60	24	82*60*49
	HC2030277FM	Terminals/Leads		277	50/60	24	82*60*49
284700010005	HC4021FM	Terminals/Leads	40	380/415	50/60	24	90*60*56
284700010006	HC4021FM-1	Terminals/Leads		380	50/60	24	90*60*56
284700010007	HC4021FM-5	Terminals/Leads		415	50/60	24	90*60*56
284700010008	HC4021FM-2	Terminals/Leads		208/240	50/60	24	90*60*56
284700010009	HC40240FM	Terminals/Leads		240	50/60	24	90*60*56
284700010010	HC4031FM	Terminals/Leads		120/208/240	50/60	24	90*60*56
284700010011	HC4031FM-3	Terminals/Leads		120/208	50/60	24	90*60*56
284700010012	HC4031FM-4	Terminals/Leads		120/240	50/60	24	90*60*56
284700010013	HC40120FM	Terminals/Leads		120	50/60	24	90*60*56
284700010014	HC40277FM	Terminals/Leads		277	50/60	24	90*60*56
284700010015	HC40480FM	Terminals/Leads		480	50/60	24	90*60*56
284700010016	HC5021FM	Terminals/Leads	50	380/415	50/60	24	90*62*56
284700010017	HC5021FM-1	Terminals/Leads		380	50/60	24	90*62*56
284700010018	HC5021FM-2	Terminals/Leads		415	50/60	24	90*62*56
284700010019	HC5031FM	Terminals/Leads		120/208/240	50/60	24	90*62*56
284700010020	HC5031FM-2	Terminals/Leads		208/240	50/60	24	90*62*56
284700010021	HC5031FM-3	Terminals/Leads		120/208	50/60	24	90*62*56
284700010022	HC5031FM-4	Terminals/Leads		120/240	50/60	24	90*62*56
284700010023	HC5031FM-5	Terminals/Leads		208/240/480	50/60	24	90*62*56
284700010024	HC50120FM	Terminals/Leads		120	50/60	24	90*62*56
284700010025	HC50277FM	Terminals/Leads		277	50/60	24	90*62*56
284700010026	HC50480FM	Terminals/Leads		480	50/60	24	90*62*56
284700010027	HC75100FM-1	Lead/terminal/Currentswitch/ Terminal + current switch	75	277/380/575	50/60	24	102*103*65
284700010028	HC75100FM-2	Lead/terminal/Current switch/ Terminal + current s witch		120/208/240/480	50/60	24	102*103*65
284700010029	HC75100FM-3	Lead/terminal/Current switch/ Terminal + current switch		208/240/480	50/60	24	102*103*65
284700010030	HC7510031FM	Lead/terminal/Current switch/ Terminal + current switch		120/208/240	50/60	24	102*103*65
284700010031	HC75100120FM	Lead/terminal/Current switch/ Terminal + current s witch		120	50/60	24	102*103*65
284700010032	HC75100277FM	Lead/terminal/Current switch/ Terminal +current s witch		277	50/60	24	102*103*65
284700010033	HC75100480FM	Lead/terminal/Current switch/ Terminal + current switch		480	50/60	24	102*103*65

* The above dimensions are for reference, HIlTIO could design and produce according to customer requirements.
