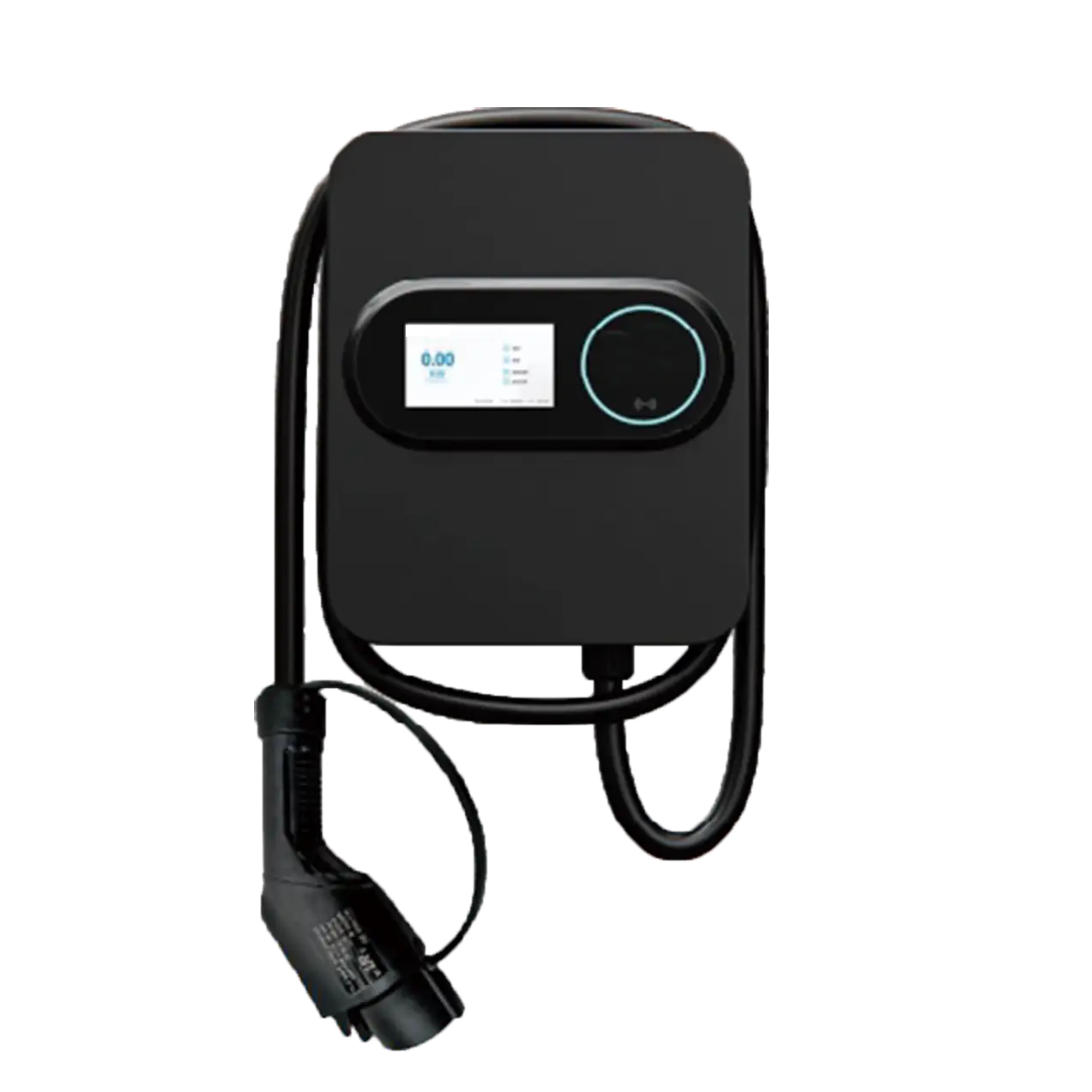

UL AC Charging Wall Box

AC Charging Wall Box provides efficient and safe energy delivery for electric vehicles in various settings — from home garages and office buildings to meet diverse needs for daily commuting, fleet management, and long-distance travel.

Category UL AC Charging Wall Box

DESCRIPTION

Item Specification

Product Information Model HC32/40/48AS HC48AN

Standard SAE J1772 NACS

Input Voltage 208/240VAC 208/240VAC

Output Voltage 208/240VAC 208/240VAC

Rated Current 32A / 40A /48A 48A

Rated Power 7KW/10KW/11.52KW 11.52KW

Frequenc 60Hz 60Hz

Static Power <5W <5W

Standards RCD CCID20+GMI

Degree Type 3R

Warranty 2 years (warranty extension possible)

Certification UL ROHS

Certification Standard UL2594 UL2231 UL991 UL1998

Item	Specification
Product Information	Model HC32/40/48AS	HC48AN
	Standard SAE J1772	NACS
	Input Voltage 208/240VAC	208/240VAC
	Output Voltage 208/240VAC	208/240VAC
	Rated Current 32A / 40A /48A	48A
	Rated Power 7KW/10KW/11.52KW	11.52KW
	Frequenc 60Hz	60Hz
	Static Power <5W	<5W
Standards	RCD CCID20+GMI
	Degree Type 3R
	Warranty 2 years (warranty extension possible)
	Certification UL ROHS
	Certification Standard UL2594 UL2231 UL991 UL1998
